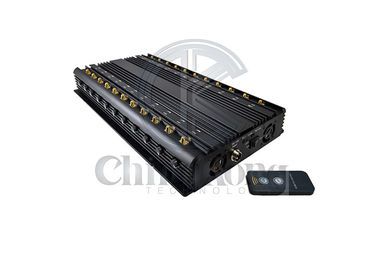

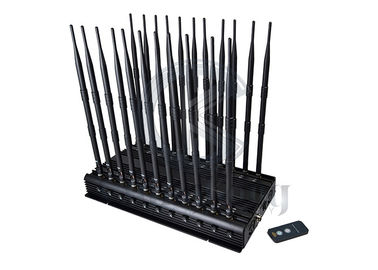

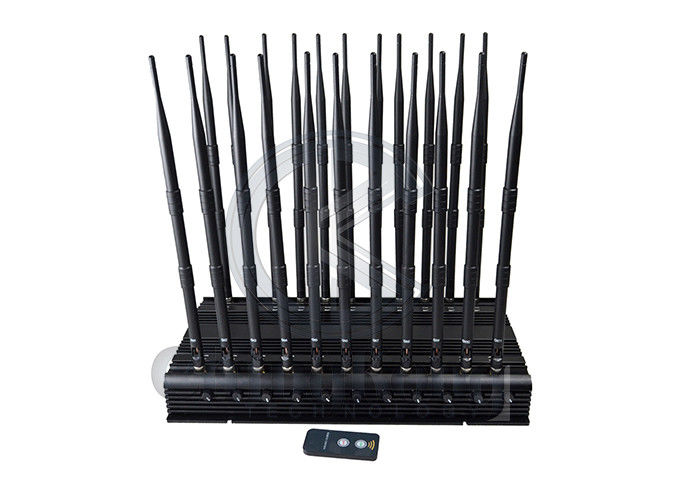

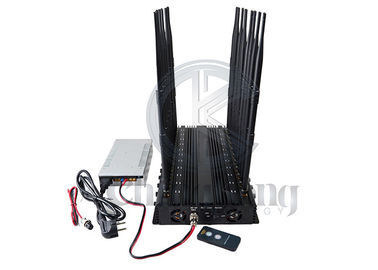

22 Bands Signal Jamming Device 42 Watts WiFi GPS LOJACK 2G 3G 4G 5G

22 Bands Signal Jamming Device 42 Watts WiFi GPS LOJACK 2G 3G 4G 5G

22 Bands Signal Jamming Device 42 Watts WiFi GPS LOJACK 2G 3G 4G 5G
22 Bands Signal Jamming Device 42 Watts WiFi GPS LOJACK 2G 3G 4G 5G
22 Bands Signal Jamming Device 42 Watts WiFi GPS LOJACK 2G 3G 4G 5G
Product Details:
Place of Origin: China
Brand Name: ChingKong
Model Number: CKJ-1902A22
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Standard packing
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, Western Union,Money Gram
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Feature: World First 22 Antennas 5G Signal Jamming Device Weight: Appr.8.0kg
Working Time: Not-stop Working Power Supply: AC110 Or 220V To DC12V
Model: CKJ-1901A22 Color: Black
High Light:

42 Watts Signal Jamming Device

,

22 Bands Signal Jamming Device

,

GPS LOJACK Cellphone Signal Jammer

Product Information
Name: World First 22 Antennas Wireless Signal Jammer For Full Bands 5GLTE 2G 3G 4G Wi-Fi GPS LOJACK Output Power 42Watt With Infrared Remote Control Turn ON /OFF Power
Model: CKJ-1901A22
Color: Black


Basic Specifications
Jam Signal Type:

Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power:Total 45W,1-3W each band
Jam Radius:2-40meters
Power Supply:AC110 or 220V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time:Not-stop Working
Product Size:450x 238x 60 mm(not Include Antenna)
Product Weight: appr.8kg
Package Contents:Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1


Product description:
This is the latest designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters



Key technical specifications: CKJ-1901A22 EU   5G Jammer
Channel Output port Frequency range Average out-putting power
1 CDMA/RC868 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 3G 2110-2170MHZ 33dbm / 2W
5 4G800 758-821MHZ 35dbm / 3W
6 4G2600 2570-2690MHZ 30dbm / 1W
7 4G2500 2500-2570MHZ 30dbm / 1W
8 4G2300 2300-2400MHZ 30dbm / 1W
9 5G 1500 1427-1518MHZ 33dbm / 2W
10 5G 3.4G 3300-3600MHZ 30dbm / 1W
11 5G 3.8G 3600-3900MHZ 30dbm / 1W
12 5G 4.0G 3900-4200MHZ 30dbm / 1W
13 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
14 WIFI 5.2G 4900-5500MHZ 30dbm / 1W
15 WIFI 5.8G 5500-5900MHZ 30dbm / 1W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
19 LOJACK 167-175MHZ 35dbm / 3W
20 VHF 135-175Mhz 35dbm / 3W
21 UHF/RC433 400-470MHZ 35dbm / 3W
22 RC315 315MHZ 35dbm / 3W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date


Advantages:
Full bands 22 chancel design, Customized for special frequency range
High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power



Key technical specifications: CKJ-1901A22 US    5G Jammer
Channel Output port Frequency range Average out-putting power
1 CDMA/RC868 850-894MHz 35dbm / 3W
2 GSM/LORA 900-960MHZ 35dbm / 3W
3 DCS/PCS 1805-1990MHZ 33dbm / 2W
4 3G, UMTS 2110-2180MHZ 33dbm / 2W
5 4G700 700-803MHZ 35dbm / 3W
6 4G2600 2496-2690MHZ 30dbm / 1W
7 4G1700 1710-1780MHZ 33dbm / 2W
8 4G2300 2345-2400MHZ 30dbm / 1W
9 5G 600 617-675MHZ 35dbm / 3W
10 5G 3.4G 3300-3600MHZ 30dbm / 1W
11 5G 3.8G 3600-3900MHZ 30dbm / 1W
12 5G 4.0G 3900-4200MHZ 30dbm / 1W
13 WIFI 2.4G 11.b, g 2400-2500MHZ 30dbm / 1W
14 WIFI 5.2G 11.a 4900-5500MHZ 30dbm / 1W
15 WIFI 5.8G 11.a 5500-5900MHZ 30dbm / 1W
16 GPS: L1 + Glonass L1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 + Glonass L2 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
19 Lojack Car Tracking 167-175MHZ 35dbm / 3W
20 VHF 135-175Mhz 35dbm / 3W
21 UHF/RC433 400-470MHZ 35dbm / 3W
22 RC315 315MHZ 35dbm / 3W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:45W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date


OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
