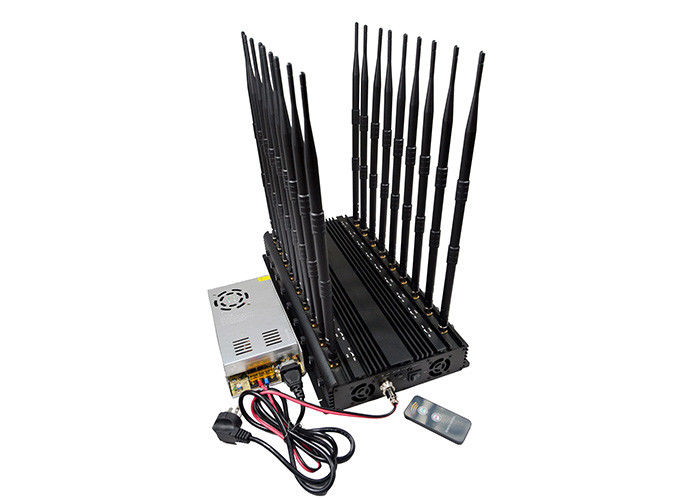

18 Antennas GPS Signal Jammer 2G 3G 4G WiFi GPS LOJACK With Infrared Remote Control

18 Antennas GPS Signal Jammer 2G 3G 4G WiFi GPS LOJACK With Infrared Remote Control

  • 18 Antennas GPS Signal Jammer 2G 3G 4G WiFi GPS LOJACK With Infrared Remote Control
18 Antennas GPS Signal Jammer 2G 3G 4G WiFi GPS LOJACK With Infrared Remote Control
Product Details:
Place of Origin: China
Brand Name: ChingKong
Model Number: Signal Jamming Device
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Standard packing
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, Western Union,Money Gram
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Feature: Wireless Weight: Appr.7.5kg
Working Time: Not-stop Working Power Supply: AC110 Or 220V To DC12V
Model: CKJ-1813A18 Color: Black
High Light:

cell phone signal interrupter

,

cell phone signal scrambler

Product Information

Name: World First 18 Antennas Wireless Signal Jammer For Full Bands 2G 3G 4G Wi-Fi GPS LOJACK Output Power 42Watt With Infrared Remote Control Turn ON /OFF Power

Model: CKJ-1813A18

Color: Black


Basic Specifications

Jam Signal Type:

1:CKJ-1813A18-A :Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 +Walkie-Talkie UHF/VHF

2:CKJ-1813A18-B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 + Full Bands Walkie-Talkie 135-500MHZ

3:CKJ-1813A18-C :Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GHZ + GPSL1-L5 +Walkie-Talkie UHF/VHF



Output Power:Total 42W,1-3W each band

Jam Radius:2-40meters

Power Supply:AC110 or 220V to DC12V

Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan

Working Time:Not-stop Working

Product Size:460x 238x 60 mm(not Include Antenna)

Product Weight: appr.7.5kg

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x18,Car storage battery cable x1


Product description:
This is the latest designed with 18 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters

Advantages:

Full bands 18 chancel design, Customized for special frequency band
High output power, Total up to: 42W , jamming up to 40m (Still depends on the strength signal in given area)

External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation

2-5meters with Infrared Remote Control Turn ON /OFF Power


OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered

Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument



Key technical specifications: CKJ-1813A18-A
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 4G1 LTE 700-805 or 790-826MHz 35dbm / 3W
8 4G LTE 2500-2690MHZ 30dbm / 1W
9 4G2 1700 1710-1780MHz 33dbm / 2W
10 4GH 2300 2300-2400MHZ 30dbm / 1W
11 433 (car remote control) 433MHZ 35dbm / 3W
12 315 (car remote control) 315MHZ 35dbm / 3W
13 VHF 135-175Mhz 35dbm / 3W
14 UHF 400-470MHZ 35dbm / 3W
15 LOJACK 167-175MHZ 35dbm / 3W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date



Key technical specifications: CKJ-1813A18-B
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 4G1 LTE 700-805 or 790-826MHz 30dbm / 1W
8 4G LTE 2500-2690MHZ 30dbm / 1W
9 4G2 1700 1710-1780MHz 33dbm / 2W
10 4GH 2300 2300-2400MHZ 30dbm / 1W
11 Walkie-Talkie VHF1 135-200MHZ 35dbm / 3W
12 Walkie-Talkie UHF2 200-300MHZ 35dbm / 3W
13 UHF3+RC315 300-400Mhz 35dbm / 3W
14 UHF4+RC433 400-500MHZ 35dbm / 3W
15 LOJACK 167-175MHZ 35dbm / 3W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date



Key technical specifications: CKJ-1813A18-C
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 WIFI5.2G 5100-5500MHz 30dbm / 1W
8 WIFI5.8G 5500-5900MHz 30dbm / 1W
9 4G1 LTE 700-805 or 790-826MHz 33dbm / 2W
10 4G LTE 2500-2690MHZ 30dbm / 1W
11 4G2 1700 1710-1780MHz 35dbm / 3W
12 433 (car remote control) 433MHZ 35dbm / 3W
13 315 (car remote control) 315MHZ 35dbm / 3W
14 VHF 135-175Mhz 35dbm / 3W
15 UHF 400-470MHZ 35dbm / 3W
16 LOJACK 167-175MHZ 33dbm / 2W
17 GPSL1 1570-1580Mhz 33dbm / 2W
18 GPSL2+L5 1170-1280MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:40W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date
