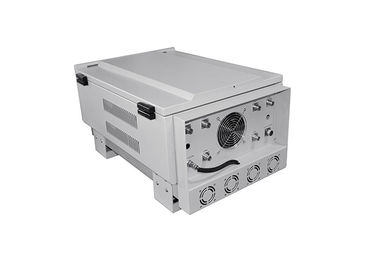

Prison Project Waterproof 800W High Power Signal Jammer

Prison Project Waterproof 800W High Power Signal Jammer

  • Prison Project Waterproof 800W High Power Signal Jammer
  • Prison Project Waterproof 800W High Power Signal Jammer
  • Prison Project Waterproof 800W High Power Signal Jammer
  • Prison Project Waterproof 800W High Power Signal Jammer
Prison Project Waterproof 800W High Power Signal Jammer
Product Details:
Place of Origin: China
Brand Name: ChingKong
Model Number: CKJ-15007i8-W High Power Prison Jammer
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Standard packing
Delivery Time: 10 Working Days After Received Payment
Payment Terms: T/T, Western Union,Money Gram
Supply Ability: 500 per month
Contact Now
Detailed Product Description
Feature: 8 Antenans High Power Signal Jammer Antennas: 8 High Gains Omni Antennas Or Directional
Power Supply: ACPower 220V To DC24V Jamming Range: 50-500m Radius
Cooling System: 5 Cooling Fans Inside Frequencies: Cell Phone 2G 3G 4G GPS WIFI UHF VHF
High Light:

signal jammers for security


cell phone zapper

Key specifications:CKJ-1507I8-W
Channel Output Port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 50dbm / 100W
2 DCS/PCS 1805-1990MHz 50dbm / 100W
3 3G 2110-2170MHz 50dbm / 100W
4 4GLTE 700-803 or 790-862MHz 50dbm / 100W
5 4G WIMAX 2500-2690 or 2300-2400MHz 50dbm / 100W
6 WIFI2.4G 2400-2500MHz 50dbm / 100W
7 VHF 130-174MHz 50dbm / 100W
8 UHF 400-470MHz 50dbm / 100W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)
Dimension: (length,width, height ) 740x 510 x 350 mm (Not include antenna)
Package Size: 1000 x 700 x 600mm
N.W:55kg G.W:55Kg + 10kg antennas =65kg
Working temperature: -30~60℃
Total power:800W
Shielding radius: (100--500) meters At -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date

OMNI FRP Antenna: Dimension: (length, width, height,): 500x 30 x 30mm

N.W:0.5Kg Gains:5-10dbi VSWR>1.5 H:180º V:20 º

Basic station Directional Antenna: Dimension: (length, width, height,): 125x 25 x 8.5cm

N.W:10Kg Gains:12-20dbi VSWR>1.5 H:60-90º V:20-30º



Product Information

Name: Waterproof High Power Wireless Signal Jammers for Prison Project, output power 800W Jamming up 500m
Model: CKJ-1507I8

Color: Grey

Basic Specifications

Jam Signal Type:

1: CKJ-1507I8-W :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G +UHF VHF Signals

2: CKJ-1507I8-G :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G +GPSL1L2L5 Signals

3: CKJ-1507I8-LG :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1L2L5+LOJACK Signals

4: CKJ-1507I8-D: Drones UAVs RC2.4G/5.8GHz/433/868/912+GPSL1/L2/L5 Signals

Output Power:Total 800W,50-100W each band

Jam Radius:100-500 meters (GPS signal for 1500m)

Power Supply:AC110-240V to DC27V

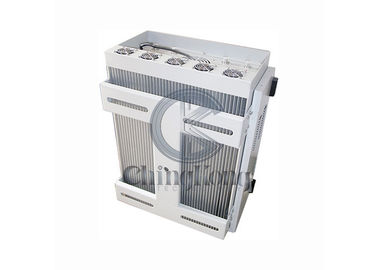

Cooling System:High efficiency aluminum alloy radiator+ 6x cooling fans

Working Time:Not-stop Working

Product Size:740x 510 x 350 mm

Product Weight: appr.65kg (for omni directional antennas)

Package Contents:Jammer Host x 1 , antenna x8, AC Plug x1,8x 2meter 1/2 Cable

Product Description
Top high power waterproof outdoor using wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, block remote control signal 2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming range 300-1500 meters


Output power total 800w, Use High gain 5-7 dbi omni or directional antennas , shielding 300-500m,Still depends on the strength signal in given area.

Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply

100% safe VSWR over protection (isolator) for each modular

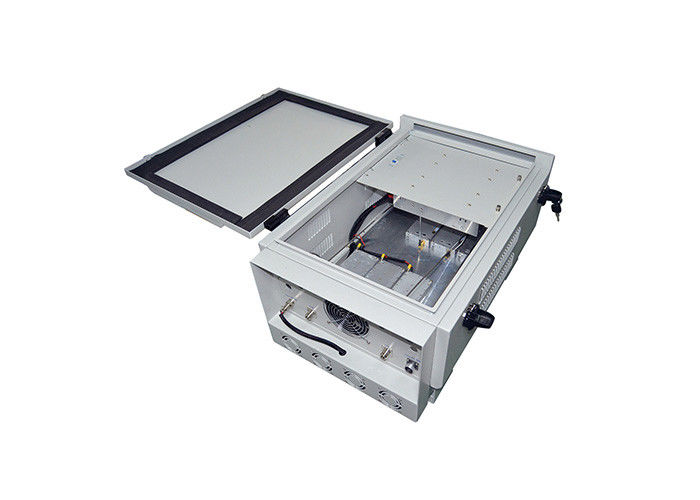

Big aluminum alloy shell and cooling fans, not-stop to work

Design for outdoor installation, Secure design to avoid sabotage

OEM Customized Service
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.

It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security

For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
