Product Details:
Payment & Shipping Terms:
|
Feature: | Full Bands GPS Portable 16 Antennas Signal Jammer | Jamming Frequency: | GPS LOJACK GSM DCS 3G 4G WIFI |
---|---|---|---|
Jamming Range: | 5-25M Depends On Signal Strength | Antennas: | High Gains 16 Omni Antennas |
Power Supply: | AC110 -220V To DC12V | Working Time: | Built-in Battery Working 2.5hours |
Color: | BLACK | Portable: | Nylon Cover For Hand Held |
High Light: | 16W Cell Phone Signal Interrupter,16 Antennas Wifi Signal Jammer |
Product Information
Name: The Latest Handheld 16 Bands Full bands GPSL1-L5 Mobile Phone Signal Jammer With Nylon Cover,Blocking 5G 4G Wi-Fi5G RF Signal Jammer,16Watt Jamming up to 25m
Model: CKJ-2002N16-WG
Color: Black
Key technical specifications: CKJ-2002N16-WG | |||
Channel | Output port | Frequency range | Average out-putting power |
Band 1 | VHF&LOJACK | 135-175MHz | 30±1dBm/ 1±0.2W |
Band 2 | 4G700 or 800 | 700-805 or 758-821MHz | 30±1dBm/ 1±0.2W |
Band 3 | 4G1700or GPSL3L4 | 1710-1780 or 1370-1390MHz | 30±1dBm/ 1±0.2W |
Band 4 | 3G | 2110-2170MHZ | 30±1dBm/ 1±0.2W |
Band 5 | WIFI5.2G | 5125-5350MHz | 30±1dBm/ 1±0.2W |
Band 6 | GPSL2L5 | 1170-1280MHz | 30±1dBm/ 1±0.2W |
Band 7 | CDMA&868 | 850-894MHz | 30±1dBm/ 1±0.2W |
Band 8 | 4G2600 or 4G2300 | 2500-2690 or 2300-2400MHZ | 30±1dBm/ 1±0.2W |
Band 9 | RC315 | 315MHz | 30±1dBm/ 1±0.2W |
Band 10 | RC433 | 433MHz | 30±1dBm/ 1±0.2W |
Band 11 | UHF&CDMA450 | 400-470MHz | 30±1dBm/ 1±0.2W |
Band 12 | GSM&LORA | 925-960MHz | 30±1dBm/ 1±0.2W |
Band 13 | GPSL1 | 1570-1580MHz | 30±1dBm/ 1±0.2W |
Band 14 | WIFI2.4G | 2400-2500MHz | 30±1dBm/ 1±0.2W |
Band 15 | DCS/PCS | 1805-1880/1920-1990MHz | 30±1dBm/ 1±0.2W |
Band 16 | WIFI5.8G | 5725-5850MHz | 30±1dBm/ 1±0.2W |
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN | |||
Dimensions: (length ,width, height) 190x126x46mm (without antenna) Length of antenna :166mm Gain:2.0dbi |
|||
Packing size: 330*250*80mm Net weight: 1.5kg Gross weight: 2.0kg | |||
Total power: 16W Shielding radius: (2-25) meters at -75dBm Still depends on the strength signal in given area Built-in battery:7.4V/12000mAh Continue working: more than 2.5+ hours |
|||
Warranty: one year from delivery date |
Basic Specifications
Jam Signal Type:
CKJ-2002N16: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5 +UHF/VHF Walkie-Talkie+LOJACK+RC433 315 868
CKJ-2002N16-5G EU:Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1L2L5 VHF/LOJACK+RC433 315
CKJ-2002N16-5G US:Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1 VHF/LOJACK+RC433 315
Output Power:Total 16W,1W each band with 2dbi gains omni antennas
Jam Radius:2-25meters Still depends on the strength signal in given area
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 3x cooling fan
Working Time:Built-in battery:7.4V/12000mAh Continue working: more than 2.5+ hours
Product Size:190x126x46 mm(without omni Antenna)
Product Weight: appr.2.0kg

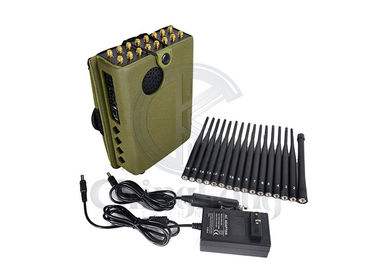

Package Contents:Jammer Host x 1, AC Charger x1, omni antenna x16, Car Charger x1, Nylon cover x1.
Product description:
The latest all-in-one design wireless signal Jammer with nylon cover for portable, 16 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G 5GLTE, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi 5G, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 is popular in 2020 and in years to come
Advantages:
The latest handheld design 16 bands all-in-one frequencies blocking all cell phone 5G 4G 3G 2G signals, LOJACK GPS, Wi-Fi, RF signals
16 watt high output power, Jamming range 2 to 25 meters (at-75dBm, depends on signal strength in given area)
Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld
With DIP switch, can turn on/off any signal band without affect other bands
With car charger, 12V DC/AC power supply is also available
With built-in bigger battery, can work more than (2.5+ hours) 150 minutes, Easily repeated charging
OEM customized service:
Customized for special frequency band
Silkscreen OEM service can be offered
Application:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
