Place of Origin: | China |
Brand Name: | ChingKong |
Model Number: | CKJ-1902A22 |
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiate |
Packaging Details: | Standard packing |
Delivery Time: | 3 Working Days After Received Payment |
Payment Terms: | T/T, Western Union,Money Gram |
Supply Ability: | 3000 per month |
Feature: | World First 22 Antennas 5G Mobile Phone Jammer | Weight: | Appr.8.0kg |
---|---|---|---|
Working Time: | Not-stop Working | Power Supply: | AC110 Or 220V To DC12V |
Model: | CKJ-1901A22 | Color: | Black |
High Light: | AC110V Mobile Phone Jamming Device,GSM LORA Mobile Phone Jamming Device,22 Antennas GPS Single Jammer |
Product Information

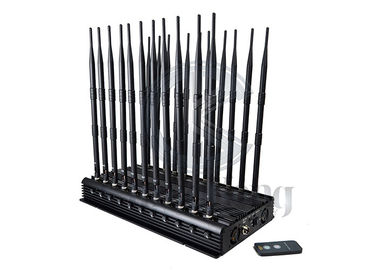

Name: World First 22 Antennas Mobile Phone Jammer For Full Bands 5GLTE 2G 3G 4G Wi-Fi GPS LOJACK Output Power 42Watt With Infrared Remote Control Turn ON /OFF Power
Model: CKJ-1901A22
Color: Black
Basic Specifications
Jam Signal Type:
Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power:Total 45W,1-3W each band
Jam Radius:2-40meters
Power Supply:AC110 or 220V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time:Not-stop Working
Product Size:450x 238x 60 mm(not Include Antenna)
Product Weight: appr.8kg
Package Contents:Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1
Product description:
This is the latest designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Key technical specifications: CKJ-1901A22 EU 5G Mobile Phone Jammer | |||
Channel | Output port | Frequency range | Average out-putting power |
1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
2 | GSM | 925-960MHZ | 35dbm / 3W |
3 | DCS | 1805-1880MHZ | 33dbm / 2W |
4 | 3G | 2110-2170MHZ | 33dbm / 2W |
5 | 4G800 | 758-821MHZ | 35dbm / 3W |
6 | 4G2600 | 2570-2690MHZ | 30dbm / 1W |
7 | 4G2500 | 2500-2570MHZ | 30dbm / 1W |
8 | 4G2300 | 2300-2400MHZ | 30dbm / 1W |
9 | 5G 1500 | 1427-1518MHZ | 33dbm / 2W |
10 | 5G 3.4G | 3300-3600MHZ | 30dbm / 1W |
11 | 5G 3.8G | 3600-3900MHZ | 30dbm / 1W |
12 | 5G 4.0G | 3900-4200MHZ | 30dbm / 1W |
13 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
14 | WIFI 5.2G | 4900-5500MHZ | 30dbm / 1W |
15 | WIFI 5.8G | 5500-5900MHZ | 30dbm / 1W |
16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
19 | LOJACK | 167-175MHZ | 35dbm / 3W |
20 | VHF | 135-175Mhz | 35dbm / 3W |
21 | UHF/RC433 | 400-470MHZ | 35dbm / 3W |
22 | RC315 | 315MHZ | 35dbm / 3W |
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna) | |||
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
Warranty: one year from delivery date |
Advantages:
Full bands 22 chancel design, Customized for special frequency range
High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
Key technical specifications: CKJ-1901A22 US 5G Mobile Phone Jamming Device | |||
Channel | Output port | Frequency range | Average out-putting power |
1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
2 | GSM/LORA | 900-960MHZ | 35dbm / 3W |
3 | DCS/PCS | 1805-1990MHZ | 33dbm / 2W |
4 | 3G, UMTS | 2110-2180MHZ | 33dbm / 2W |
5 | 4G700 | 700-803MHZ | 35dbm / 3W |
6 | 4G2600 | 2496-2690MHZ | 30dbm / 1W |
7 | 4G1700 | 1710-1780MHZ | 33dbm / 2W |
8 | 4G2300 | 2345-2400MHZ | 30dbm / 1W |
9 | 5G 600 | 617-675MHZ | 35dbm / 3W |
10 | 5G 3.4G | 3300-3600MHZ | 30dbm / 1W |
11 | 5G 3.8G | 3600-3900MHZ | 30dbm / 1W |
12 | 5G 4.0G | 3900-4200MHZ | 30dbm / 1W |
13 | WIFI 2.4G 11.b, g | 2400-2500MHZ | 30dbm / 1W |
14 | WIFI 5.2G 11.a | 4900-5500MHZ | 30dbm / 1W |
15 | WIFI 5.8G 11.a | 5500-5900MHZ | 30dbm / 1W |
16 | GPS: L1 + Glonass L1 | 1570-1580Mhz | 33dbm / 2W |
17 | GPSL2+L5 + Glonass L2 | 1170-1280MHZ | 33dbm / 2W |
18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
19 | Lojack Car Tracking | 167-175MHZ | 35dbm / 3W |
20 | VHF | 135-175Mhz | 35dbm / 3W |
21 | UHF/RC433 | 400-470MHZ | 35dbm / 3W |
22 | RC315 | 315MHZ | 35dbm / 3W |
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna) | |||
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
Total power:45W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
Warranty: one year from delivery date |
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
