Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker

Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker

  • Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
  • Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
  • Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
  • Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
  • Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
Desktop 16 Channel WIFI Jamming Device Mobile Phone GPS LOJACK Signal Blocker
Product Details:
Place of Origin: China
Brand Name: ChingKong
Model Number: CKJ-1601A16 WIFI Signal Jammer
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Standard packing
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, Western Union,Money Gram
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Feature: 16 Antenans WIFI Signal Jammer Jamming Frequencies: WIFI 2.4G 5.8G LOJACK,GPSL1-L5, Mobile Phone 2G 3G 4GLTE
Antennas: 16 Omni Antennas Power Supply: AC110 Or 220V To DC12V
Jamming Range: 2-40m Radius Cooling System: 4 Cooling Fans Inside
High Light:

wifi signal disruptor

,

phone reception blocker

Product Information

Name: Full Bands 16 Antennas Wireless Signal Jammer For 3G 4G Wi-Fi GPS LOJACK Output power 40Watt Shielding Radius Up to 40m
Model: CKJ-1601A16

Color: Black


Basic Specifications

Jam Signal Type:1:CKJ-1601A16-B:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2 +Walkie-Talkie UHF/VHF+ Wireless Camera 1.2GHz

 2:CKJ-1601A16-A: Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2 + Full Bands Walkie-Talkie & Wireless Headset/Microphone



Output Power:Total 40W,1-3W each band

Jam Radius:2-40meters

Power Supply:AC110-240V to DC12V

Cooling System:High efficiency aluminum alloy radiator, Build-in 4 cooling fan

Working Time:Not-stop Working

Product Size:410x 238x 60 mm(not Include Antenna)

Product Weight: appr.6.5kg

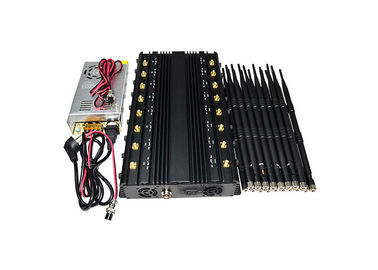

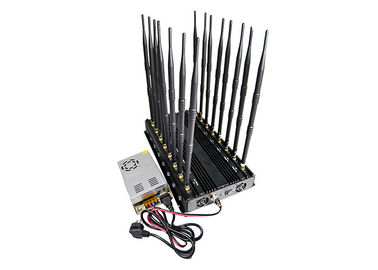

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x16,Car storage battery cable x1


Product Description
This is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters

Advantages

Full bands 16 chancel design, Customized for special frequency band
High output power, Total up to: 40W , jamming up to 40m (Still depends on the strength signal in given area)

External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation

OEM Customized Service

​Customized for special frequency band , 5GLTE 3.6GHz, etc
Silkscreen OEM service can be offered

Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument



Key technical specifications: CKJ-1601A16-B
Channel Output port Frequency range Average out-putting power
1 VHF1 130-190MHz 35dbm / 3W
2 UHF2 190-300MHz 35dbm / 3W
3 UHF3 300-400MHz 35dbm / 3W
4 UHF4 400-500MHz 35dbm / 3W
5 4G1 LTE 700 700-803 or 790-826MHz 35dbm / 3W
6 4G2 LTE 1700 1710-1780MHz 33dbm / 2W
7 CDMA 851-894MHz 35dbm / 3W
8 GSM 925-960MHz 35dbm / 3W
9 DCS&PCS 1805-1990MHz 33dbm / 2W
10 3G 2110-2170MHz 33dbm / 2W
11 4G LTE 2600 2500-2690 MHz 30dbm / 1W
12 Wi-Fi 2.4G+4G2300 2300-2500MHz 30dbm / 1W
13 Wi-Fi 5.8G 5725-5850MHz 30dbm / 1W
14 GPSL1 1570-1580MHz 33dbm / 2W
15 GPSL2+L5 1170-1280MHz 33dbm / 2W
16 LOJACK& XM radio 167-175MHz 35dbm / 3W
The below frequencies you can instead of above one to combined 16 bands
Option WIFI5.2G 5100-5500MHz 30dbm / 1W
WIFI5.8G 5500-5900MHz 30dbm / 1W
WiFi3.6G 3500-3600MHz 30dbm / 1W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 410x 238x 60mm(not Include Antenna)
Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg
Total power:40W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date
