|Place of Origin:||China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Standard packing with safe case|
|Delivery Time:||5 Working Days After Received Payment|
|Payment Terms:||T/T, Western Union,Money Gram|
|Supply Ability:||3000 per month|
|Feature:||Portable Anti Drone Jammer Gun||Power Supply:||AC110-240V To DC24V Build-in Battery|
|Jamming Frequencies:||RC2.4G 5.8G GPSL1L2L5||Jamming Range:||500-1500m|

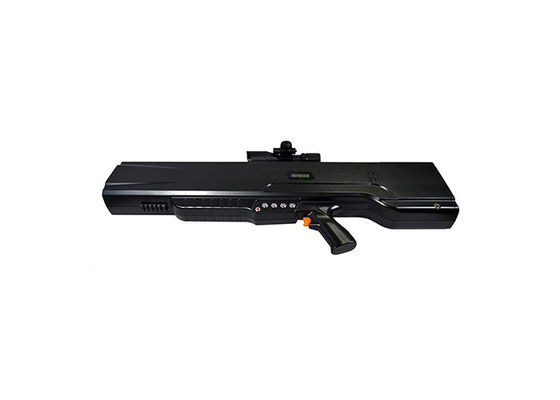

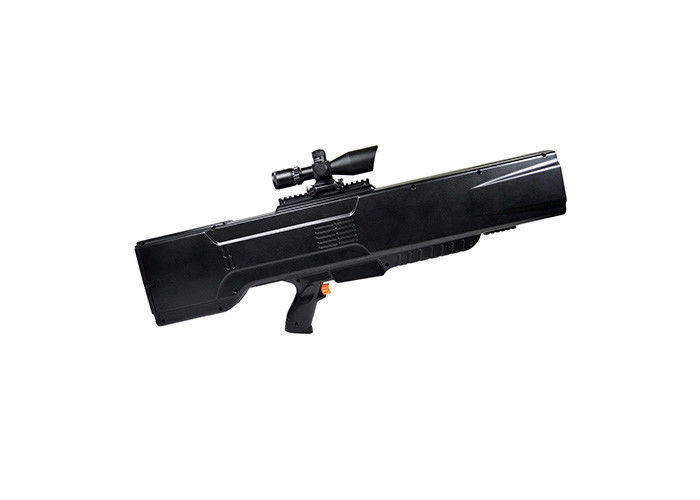

Name: Portable Gun Type High Power Drone UAV Signal Jammer With All In One Directional Antenna
Jam Signal Type:Drones RC2.4G/5.8GHz/GPSL1/L2/L5 Signals
Output Power:Total 50W,10-20W each band
Jam Radius:200-1000 meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator+ cooling fans
Working Time:Build-in battery: 24V10Ah Working Time:1.5Hours
Product Size:783*270(with Rifle Scope 340)*97mm
Product Weight: appr.6.35kg
Package Contents:Jammer Host x 1, Battery Charger x1x, Rifle Scope x1, Portable safe case x1
|Key specifications:CKJ-1810G4 Ante-Drone UAV Jammer Gun|
|Channel||Output Port||Frequency range||Average out-putting power|
|1||RC2.4G||2400-2500MHz||43dbm / 20W|
|2||RC5.8G||5725-5850MHz||40dbm / 10W|
|3||GPSL1 and Glonass L1||1560-1620MHz||40dbm / 10W|
|4||GPSL2+L5||1170-1280MHz||40dbm / 10W|
|RC 433||430-435MHz||40dbm / 10W|
|RC 315||310-320MHz||40dbm / 10W|
|RC 868/912||868-916MHz||40dbm / 10W|
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC24V)
Build-in battery: 24V10Ah Working Time:1.5Hours
|Dimension: (length,width, height ) 783*270(with Rifle Scope 340)*97mm|
|Package Size: 920x 430 x 160mm N.W:6.35kg G.W:17kg|
|Total Power:50W Shielding Radius: (200-1000) meters@-75dBm.
Still depends on the strength signal in given area.
|Warranty: One year from delivery date.|
The latest portable gun type middle power drone signal jammer for Cover 100% Drones UAVs ,Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Build-in 4-In-One High gain 12dbi directional antenna ,Jamming range: 200~1000 Meters
Built-in Battery +24V / 10AH LiFePO4 can work 1.5 Hour.
Output power total 50w, Build-in 4-In-One High gain 12dbi directional antenna, shielding 200-1000m,Still depends on the strength signal in given area.
Each unit can jam up to 4 frequency bands simultaneously, each frequency band is separate and with power switch to ON or Off, LED indicator lights display power supply
100% safe VSWR over protection for each modular
Built-in Battery, Operating Time more than 60-90 Minutes,
Battery Power and charger status & working Current display via LED screen.
Battery easily exchange design
Equip with quadruple telescope to find and shield the drone far away.
Portable safe case to pack devices for portable
OEM Customized Service
Silkscreen OEM service can be offered.
1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;
2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.
